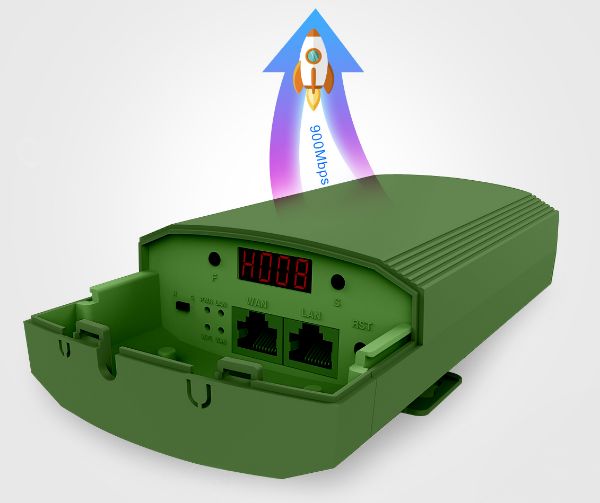

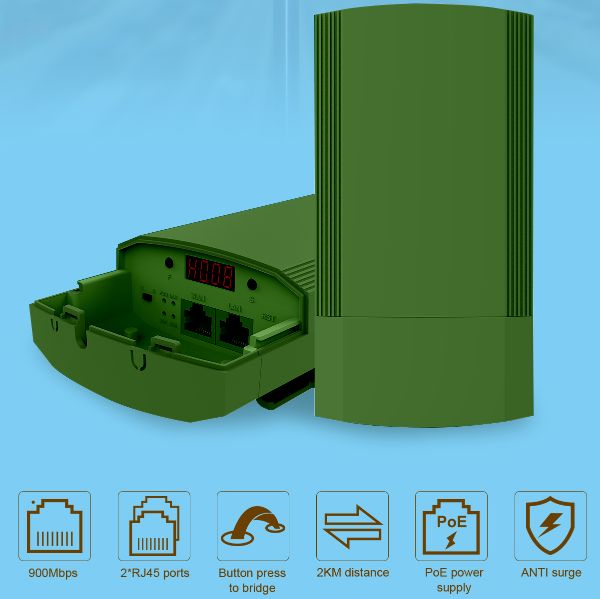

TPK-CPE300G is a hot sell 300Mbps outdoor CPE with LED display to configure the WDS PT/PTMP connection. It complies with IEEE 802.11b/g/n standard, with 8dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 1000 meters.
Most Important, TPK-CPE300G support watchdog self-detection function, reboot and recover device automatically if some network attack. Besides that, it support cloud remote management, administrator can monitor the working status, upgrade firmware, reboot, timed reboot device through cloud server, recover and maintain device at any time and any location, operator level outdoor PTP/PTMP connection equipment.
Hardware: | |
Chipset | MT7628DAN |
Standard | 802.11b/g/n |
Flash | 8MB |
DDR3L | 64MB |
2.4G Frequency | 2.4GHz - 2.484GHz |

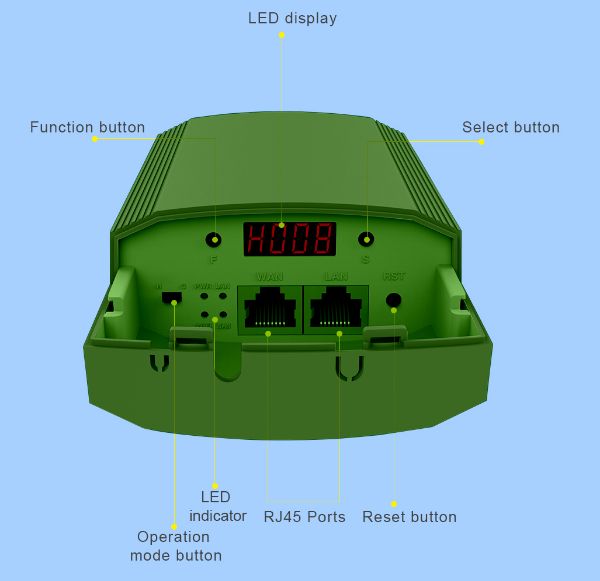

Interface | 1 * 10/100 RJ45 WAN Port |
1 * 10/100 RJ45 LAN Port | |
1 * Reset Button | |
1 * S/ M Switch | |
2 * Function Buttons | |
Antenna | Built-in 8 dBi directional antenna |
Data Rate | 300Mbps |
End Users | 50+ |
2.4G RF Power | ≤ 21dBm |
PPM | ±20ppm |
PoE | 24V Passive POE |
LED light | Sys, WAN, LAN |
Power Consumption | ≤ 5W |
Size | 168*88*57.6MM |
Weight | 0.5KG |
Others: | |
Environment | Operating Temperature: -30~55 ℃ Limit working temperature: -40~70 ℃ Storage Temperature: -40~70 ℃ Humidity: 5%~95% non-condensing |
Antenna Specification
Frequency Range | 2.4GHz |
Impedance | 50 Ohms nominal |
Gain | 8dBi |
Radiation | Directional |
Polarization | Vertical |
Connector | TIN |
