Outdoor type long-range CPE TPK-CPE900G

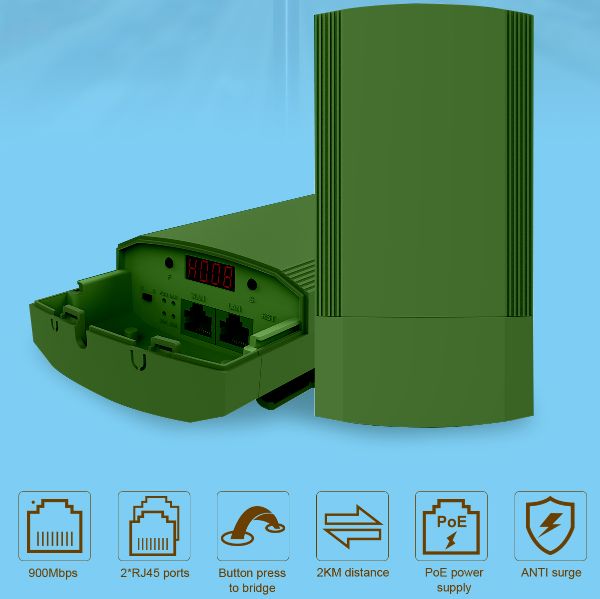

TPK-CPE900G is a hot sell 11ac outdoor CPE with 900Mbps data rate. Comply with IEEE 802.11b/g/n/ac standard, with 12dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 2000 meters.

DETAILS PARAMETERS APPLICATION HOT PRODUCTS
Description:
TPK-CPE900G is a hot sell 11ac outdoor CPE with 900Mbps data rate. Comply with IEEE 802.11b/g/n/ac standard, with 12dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 2000 meters.


It supports Wireless AP, Wireless Bridge operation mode for PTP/PTMP connections, with operation switch on device, easy to setup TPK-CPE900GM’s operation mode, no need to access into GUI, avoid the complex setup program, then simple to view the connection status and signal strength by LED signal lights, save much human work and cost, make the long range wireless coverage, data transmit and wireless monitoring simple and professional.


TPK-CPE900G with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it supports 24V passive PoE, ESD protection and surge protection, ideal for outdoor use;


Most Important, TPK-CPE900G support watchdog self-detection function, reboot and recover device automatically if some network attack. Besides that, it supports cloud remote management, administrator can monitor the working status, upgrade firmware, reboot, timed reboot device through cloud server, recover and maintain device at any time and any location, operator level outdoor PTP/PTMP connection equipment.

Hardware:

Chipset

MT7628DAN +MT7613AE

Standard

802.11a/n/ac

Flash

8MB

DDR3L

64MB

2.4G Frequency

5.150GHz – 5.850GHz

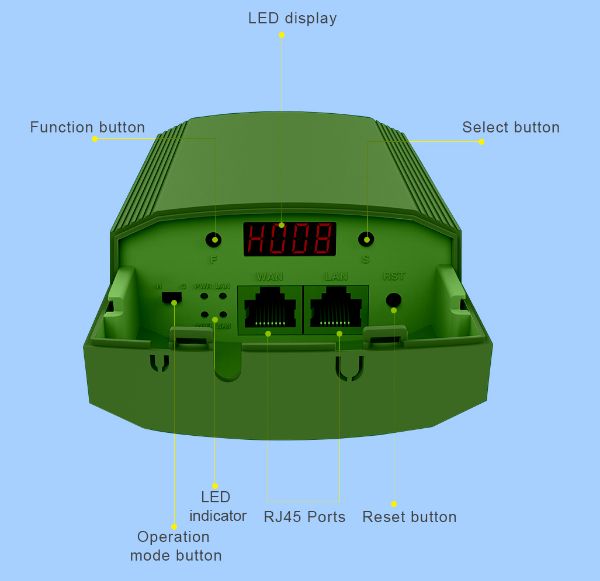

Interface

1 * 10/100 RJ45 WAN Port

1 * 10/100 RJ45 LAN Port

1 * Reset Button

1 * S/ M Switch

2 * Function Buttons

Antenna

Built-in 12 dBi directional antenna

Data Rate

900Mbps

End Users

50+

5G RF Power

≤ 19dBm

PPM

±20ppm

PoE

24V Passive POE

LED light

Sys, WAN, LAN

Power Consumption

≤ 8W

ESD Protection Standard

Contact Discharge: ±6KV; Air Discharge: ±8KV

Surge Protection Standard

Common mode: ±2KV, Differential mode ±1KV

Size

168*88*57.6MM

Weight

0.5KG

Others:

Environment

Operating Temperature: -30~55 ℃

Limit working temperature: -40~70 ℃

Storage Temperature: -40~70 ℃

Humidity: 5%~95% non-condensing


Antenna Specification


Frequency Range

5.15-5.85GHz

Impedance

50 Ohms nominal

Gain

12dBi

Radiation

Directional

Polarization

Vertical + Horizontal

Connector

TIN



.
