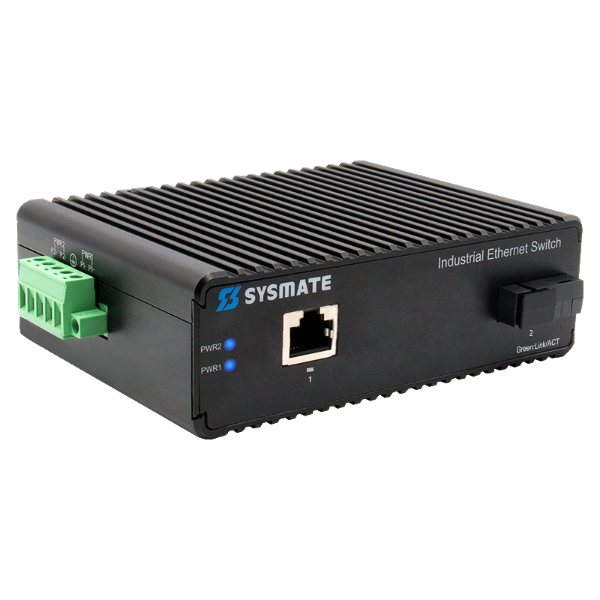

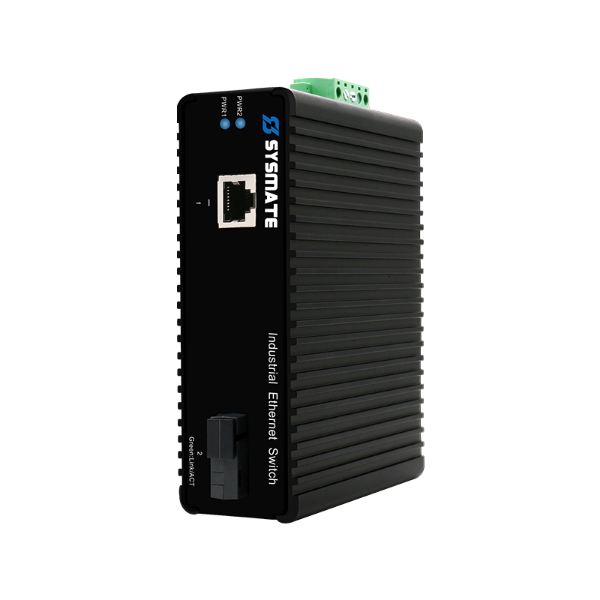

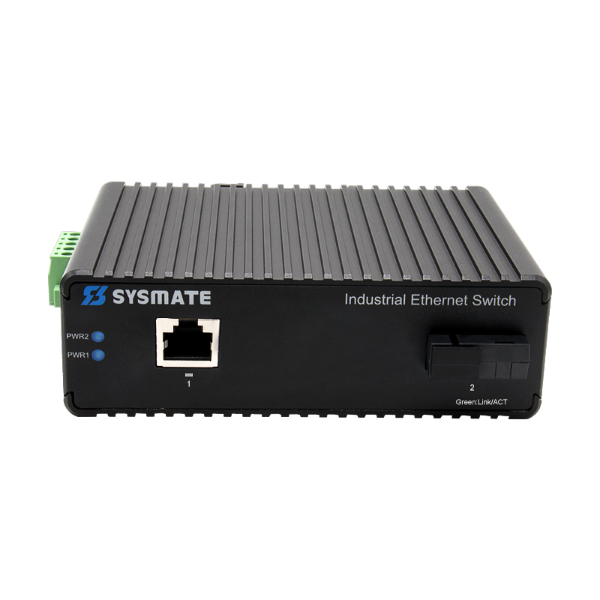

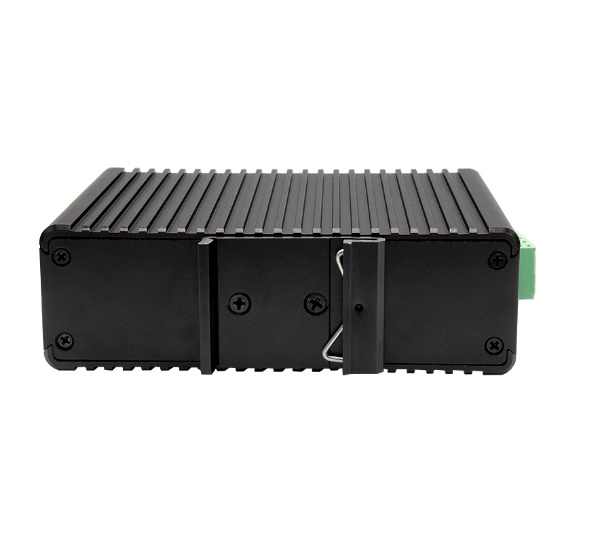

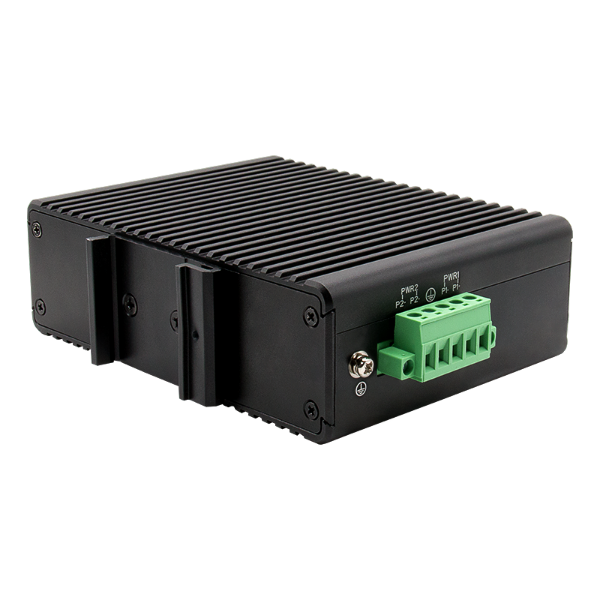

TPK-I11FSC1F 100 megabit optical fiber transceiver

● Support 1*100BASE-FX optical port ;

● Support 1*10/100BASE-T Ethernet ports ;

● DC10-58V wide voltage dual power supply redundant backup ; with anti-reverse connection protection function ;

● Passed the EMC industry level 4 standard, can effectively resist lightning strikes below 8KV,and anti-static up to 8-15KV ;

● Full industrial grade materials, IP40 protection grade, low power consumption, industrial grade design: -40°C to 85°C ;

● Corrugated high-strength aluminum alloy shell, DIN rail type installation ;

● Passed inspection of the MIIT, got CCC, FCC, CE, RoHS test certifications ;

● Support PoE expansion, IEEE802.3af: maximum power 15.4W, IEEE802.3at: maximum power 30W.

DETAILS PARAMETERS APPLICATION HOT PRODUCTS

Product Description
The TPK-I11FSC1F 100M switch is a new-generation green energy-saving unmanaged Ethernet access industrial-grade switch launched by our company. The product adopts fanless heat dissipation, redundant circuit design, IP40 protection level, and corrugated high-strength aluminum alloy shell. The work performance is more safe and reliable. Products comply with CE, FCC, CCC, ROHS standards. The operating temperature range of -40*C to 85°C can adapt to the harsh working environment. DIN rail installation meets the needs of industrial sites, and can be widely used in smart cities, smart transportation, smart pipe corridors, smart industry and other industrial scenarios with Ethernet access.
Product Features
● Support 1*100BASE-FX optical port ;
● Support 1*10/100BASE-T Ethernet ports ;
● DC10-58V wide voltage dual power supply redundant backup ; with anti-reverse connection protection function ;
● Passed the EMC industry level 4 standard, can effectively resist lightning strikes below 8KV,and anti-static up to 8-15KV ;
● Full industrial grade materials, IP40 protection grade, low power consumption, industrial grade design: -40°C to 85°C ;
● Corrugated high-strength aluminum alloy shell, DIN rail type installation ;
● Passed inspection of the MIIT, got CCC, FCC, CE, RoHS test certifications ;
● Support PoE expansion, IEEE802.3af: maximum power 15.4W, IEEE802.3at: maximum power 30W.



Specification Model: TPK-I11FSC1F
Protocol Standard	IEEE802.3，IEEE802.3u，IEEE802.3x
Switching Performance	Forwarding Rate: 0.2976Mpps
	Transmission Method: Store and Forward
	Buffer: 512K
	Switched Bandwidth: 1.4Gbps
	Latency: <5μs
MAC Address Table	1K
Interface	Electrical port: 10/100Base-TX，RJ45 port auto flow control
	Full-Duplex & Half-Duplex mode and MDI/MDI-X auto detect
	Fibre optical port: 100Base-FX，(SC/FC/ST optional ）
Transmission Distance	Twisted-pair: 100M
	Fiber Optics: 20km/40km/60km/80km/100km/120km( singlemode optional）
PoE Function	IEEE802.3af: max15.4W, IEEE802.3at：max 30w
Indicator Lamp	POWER indicator: PWR1 PWR2（Blue）
	Interface indicator: Light indicator-Link, Flashing indicator-Act（Green）
Power Supply	Input voltage: DC10-58V double power supply back-up
	Access terminal: 5-core 5.08mm pitch plug-in terminal
	Power: <3W
	Overload Protection: support
	Reverse Connection Protection: support
	Redundancy Protection: support
Mechanical Structure	Shell: Aluminum alloy Shell
	Cooling Method: no fan, natural cooling
	IP Grade：IP40
	Dimension：125mm * 95mm * 40mm
	Weight: 450g around
	Installation Method: DIN rail / wall mounted
Environment	Operating Temperature: -40~85℃
	Storage Temperature: -40~85℃
	Relative Humidity: 5%~95%（non-condensing）
Accessories	Power supply terminal, certification, instruction manual, power adapter(optional)
Warranty	MTBF: 450000h
	Warranty: 3 years
Certification	CCC、FCC、CE、RoHS
Industry Standard	EMI：FCC CFR47 Part 15, EN55022/CISPR22, Class A
	EMS IEC61000-4-2(ESD) ±8kV(contact), ±15kV(air)
	IEC61000-4-3(RS) 10V/m(80MHz-2GHz)
	IEC61000-4-4(EFT) Power Port: ±4kV；Data Port:±2kV
	IEC61000-4-5(Surge) Power Port: ±2kV/DM,±4kV/CM; Data Port: ±2kV
	IEC61000-4-6(CS) 3V(10kHz-150kHz); 10V(150kHz-80MHz)
	Mechanical IEC60068-2-6 (vibration)
	IEC60068-2-27 (impact)
	IEC60068-2-32 (drop)

Ordering Information
Model	Product Description	Unit
TPK-I11FSC1F	1100M optical port, 110/100Base-TX adaptive electrical port,	Pieces
TPK-I11FSC1F	single-mode single-fiber 20K（optional）	Pieces
TPK-I11FSC1F-2	1100M optical port, 110/100Base-TX adaptive electrical port, single-mode dual-fiber	Pieces
