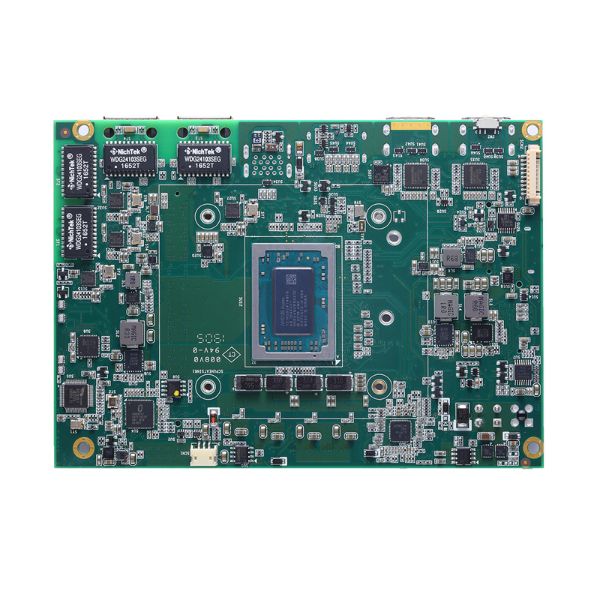

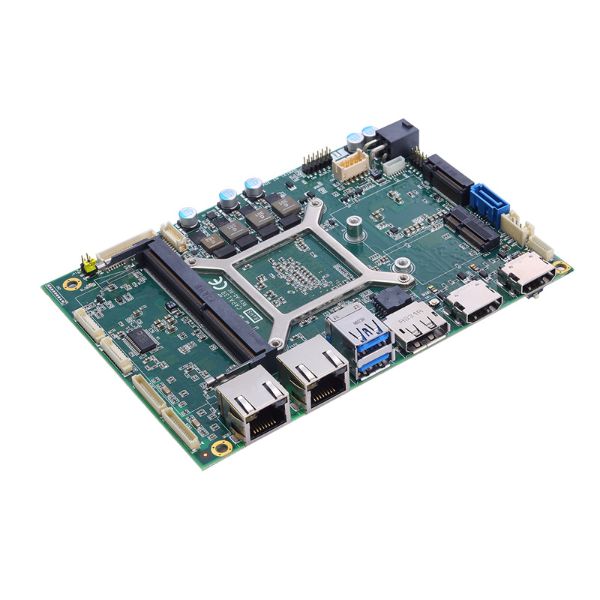

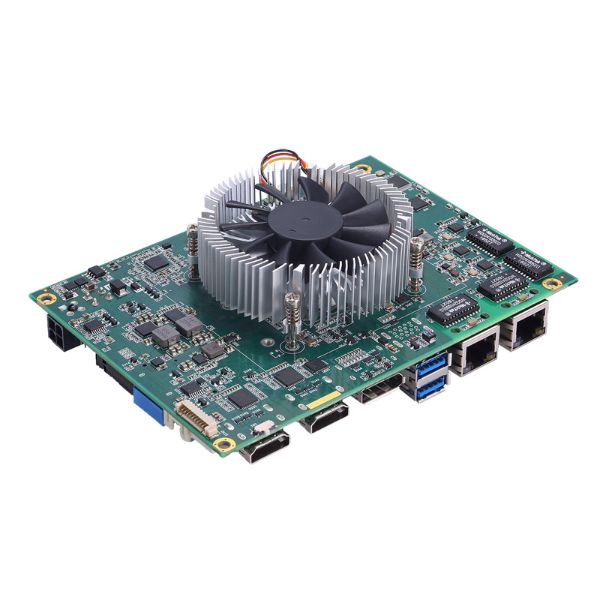

TOP-AE1807-K24 EC3 3.5-inch motherboard

EC3 3.5-inch motherboard
● AMD Ryzen™ Embedded V1807B and V1605B APU
● 1 DDR4 SO-DIMM for up to 16GB of memory
● 4 GbE LAN
● Supports quad-view
● M.2 Key E
● M.2 Key B
DETAILS PARAMETERS APPLICATION HOT PRODUCTS
EC3 3.5-inch motherboard
● AMD Ryzen™ Embedded V1807B and V1605B APU
● 1 DDR4 SO-DIMM for up to 16GB of memory
● 4 GbE LAN
● Supports quad-view
● M.2 Key E
● M.2 Key B

CPU AMD Ryzen™ Embedded V1807B/V1605B APU onboard
System Memory 1 x 260-pin DDR4-2400 (V1605B), DDR4-3200 (V1807) SO-DIMM, up to 16GB
Chipset SoC integrated
BIOS AMI
SSD 1 x M.2 Key B (SATA, USB 2.0, PCIe x2 for optional) in 22x42 or 30x42
Watchdog Timer 255 levels, 1 to 255 sec.
Expansion Interface 1 x M.2 Key E (PCIex1, USB2.0) in 22x30
Battery Lithium Lithium 3V/220 mAh
Power Input 2 x 2 pin connector
+12V DC-in only
AT Auto Power On function supported
Power Requirement AMD V1605B @2.0 GHz 16GB DDR4, max. RMS.
+12V@2.5A
AMD V1807B @3.8 GHz 16GB DDR4, max. RMS.
+12V@4.2A
Dimensions 146 x 104 mm EC3 3.5-inch motherboard
Board Thickness 1.6 mm
Operating Temperature -20°C to +60°C (-4°F to 140°F)
Humidity 10% - 95% relative humidity, non-condensing
SATA 1 x SATA-600
Hardware Monitoring Detect CPU/system temperature, voltage and fan speed
Ethernet 2 x10/100/1000 Mbps Ethernet with Realtek RTL8111G; support Wake-on-LAN, PXE Boot ROM 2 x10/100/1000 Mbps Ethernet with Realtek RTL8111G; support Wake-on-LAN, PXE Boot ROM (optional)
Audio HD audio link
USB 2 x USB 2.0
2 x USB 3.1 Gen2
Serial 1 x RS-232/422/485
1 x RS-232
TPM ST ST33HTPH2E32AHB4 with TPM 2.0 compliant
SMBus N/A
Digital I/O 8-channel in/out programmed
Chipset AMD Radeon™ RX Vega Graphics
Memory Size Share System memory
Display Interface 1 x DisplayPort
2 x HDMI
1 x LVDS; 18/24-bit single/dual channel


EC3 3.5-inch motherboard

Ordering Information
Standard
CAPA13RPHGG-V1605B
(P/N: E38E13R104)
3.5” Embedded SBC with AMD Ryzen™ V1605B
(2.0 - 3.6 GHz, 2MB Cache, 15W) DisplayPort, 2 HDMI, LVDS
and 2 GbE LAN, without fan
CAPA13RPHGG-V1605B w/fan
(P/N: E38E13R108)
3.5” Embedded SBC with AMD Ryzen™ V1605B
(2.0 - 3.6 GHz, 2MB Cache, 15W) DisplayPort, 2 HDMI, LVDS,
2 GbE LAN and fan
CAPA13RPHGG-V1807B
(P/N: E38E13R103)
3.5” Embedded SBC with AMD Ryzen™ V1807B
(3.35 - 3.8 GHz, 2MB Cache, 45W) DisplayPort, 2 HDMI,
LVDS and 2 GbE LAN, without fan
CAPA13RPHGG-V1807B w/fan
(P/N: E38E13R107)
3.5” Embedded SBC with AMD Ryzen™ V1807B
(3.35 - 3.8 GHz, 2MB Cache, 45W) DisplayPort, 2 HDMI,
LVDS, 2 GbE LAN and fan
Optional
CAPA13RPH4G-V1605B
(P/N: E38E13R101)
3.5” Embedded SBC with AMD Ryzen™ Embedded V1605B
(2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort,
2 HDMI, LVDS, and 4 GbE LAN, without fan
CAPA13RPH4G-V1605B w/fan
(P/N: E38E13R106)
3.5” Embedded SBC with AMD Ryzen™ Embedded V1605B
(2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort,
2 HDMI, LVDS, 4 GbE LAN, and fan
CAPA13RPH4G-V1807B
(P/N: E38E13R100)
3.5” Embedded SBC with AMD Ryzen™ Embedded V1807B
(3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort,
2 HDMI, LVDS, and 4 GbE LAN, without fan
CAPA13RPH4G-V1807B w/fan
(P/N: E38E13R105)
3.5” Embedded SBC with AMD Ryzen™ Embedded V1807B
(3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort,
2 HDMI, LVDS, 4 GbE LAN, and fan
AX93A22 (P/N: E393A22100) HD codec audio board for Mic-in/Line-in/Line-out
594H3186800E  Buzzer cable 9 x 55 mm 2-pin, L=400 mm
59380880250E  COM port cable DB9--9 x 1P, P=1.25, L=250 mm
594E8422800E  2 x USB 2.0 cable with bracket, 180 mm
7128E13R000E Heatspreader
