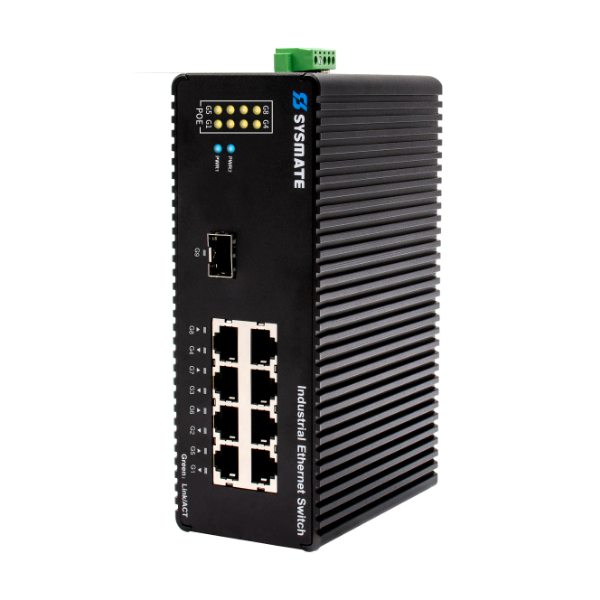

Specification Model: TPK-IP21GS8G |
Protocol Standard | IEEE802.3，IEEE802.3u，IEEE802.3z，IEEE802.3ab |
Switching Performance | Forwarding Rate: 13.4Mpps |
Transmission Method: Store and Forward |
Buffer: 2M |
Switched Bandwidth: 18Gbps |
Latency: <10μs |
MAC Address Table | 16K |
Interface | Electrical port: 10/100/1000Base-TX，RJ45 port auto flow control |
Full-Duplex & Half-Duplex mode and MDI/MDI-X auto detect |
Fibre optical port: 1000Base-FX, SFP port |
Transmission Distance | Twisted-pair: 100M |
Fiber optics: 550m(multimode) |
20km/40km/60km/80km/100km/120km( single-mode） |
PoE Function | IEEE802.3af: max15.4W, IEEE802.3at：max 30w |
Indicator Lamp | POWER indicator: PWR1 PWR2（Blue） POE （Yellow） |
Interface indicator: Light indicator-Link, Flashing indicator-Act（Green） |
Power Supply | Input voltage: DC10-58V double power supply back-up |

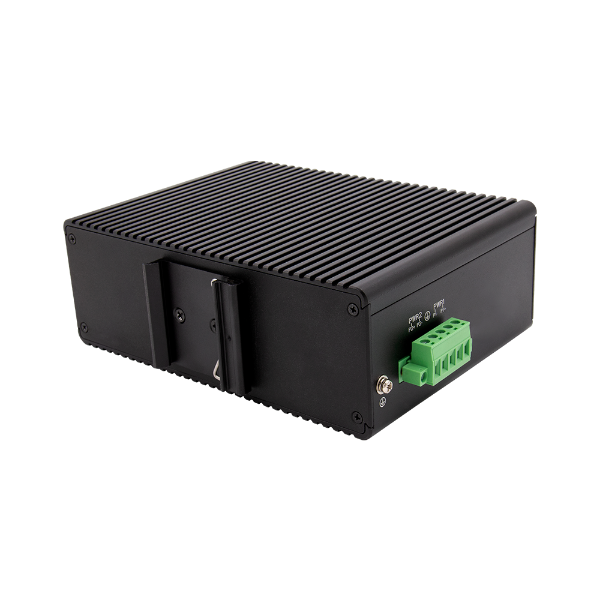

Access terminal: 5-core 5.08mm pitch plug-in terminal |
Power: <6W |
Overload Protection: support |
Reverse Connection Protection: support |
Redundancy Protection: support |
Mechanical Structure | Shell: Aluminum alloy Shell |
Cooling Method: no fan, natural cooling |
IP Grade：IP40 |
Dimension：170mm * 118mm * 55mm |
Weight: 850g around |

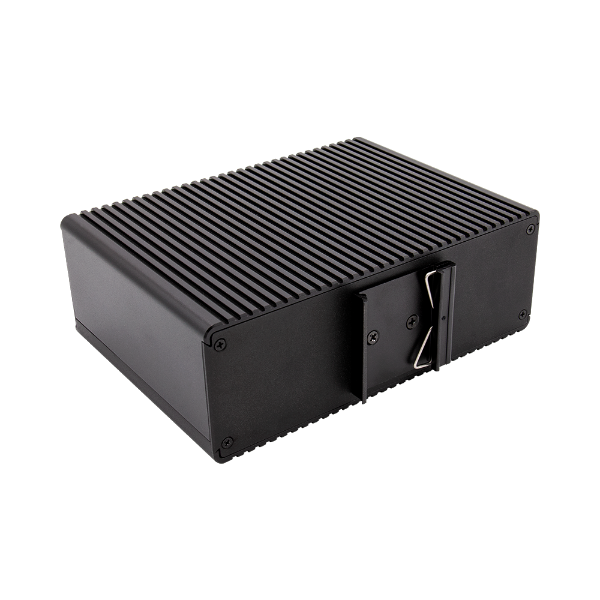

Installation Method: DIN rail / wall mounted |
Environment | Operating Temperature: -40~85℃ |
Storage Temperature: -40~85℃ |
Relative Humidity: 5%~95%（non-condensing） |
Accessories | Power supply terminal, certification, instruction manual, power adapter(optional) |
SFP optical module(optional) |
Warranty | MTBF: 450000h |
Warranty: 5 years |
Certification | CCC、FCC、CE、RoHS |
Industry Standard | EMI：FCC CFR47 Part 15, EN55022/CISPR22, Class A |
EMS IEC61000-4-2(ESD) ±8kV(contact), ±15kV(air) |
IEC61000-4-3(RS) 10V/m(80MHz-2GHz) |
IEC61000-4-4(EFT) Power Port: ±4kV；Data Port:±2kV |
IEC61000-4-5(Surge) Power Port: ±2kV/DM,±4kV/CM; Data Port: ±2kV |
IEC61000-4-6(CS) 3V(10kHz-150kHz); 10V(150kHz-80MHz) |
Mechanical IEC60068-2-6 (vibration) |
IEC60068-2-27 (impact) |
IEC60068-2-32 (drop) |
