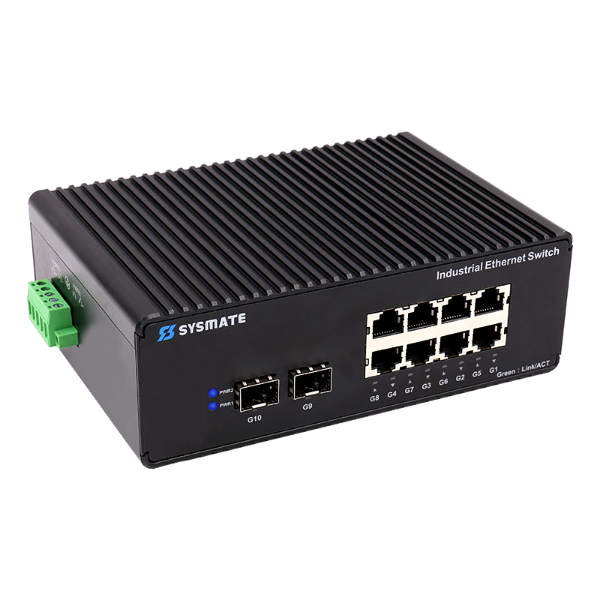

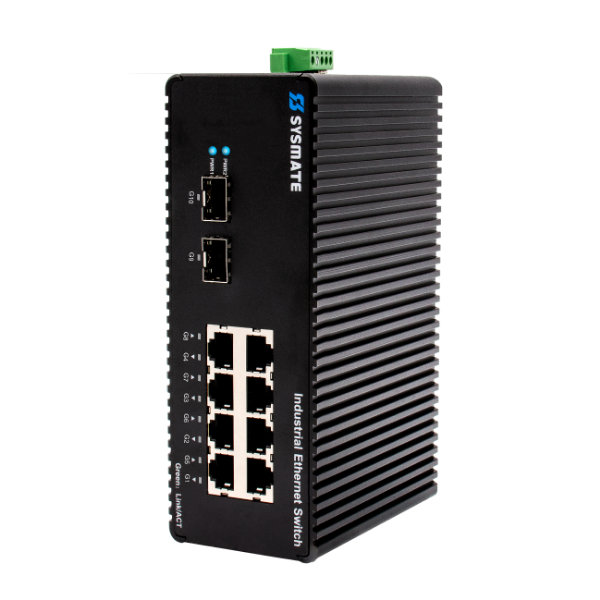

TPK-I22GS8G gigabit industrial level switch

Product Description：

TPK-I4M2GS8G Gigabit managed switch is a new-generation of high-performance high-end intelligent Ethernet access industrial grade switch launched by our company. The product has a complete security and QoS strategy. It supports VLAN division, port mirroring, port rate limiting, supports broadcast storm suppression, flow control and can be managed through WEB, CLI, SNMP multiple interfaces and methods, with rich business features to meet the user's multi-service integrated, safe, scalable and easy managed network creating demand. The product adopts fanless heat dissipation, redundant circuit design, IP40 protection grade and corrugated high-strength aluminum alloy shell, so the work performance is more safe and reliable. The product complies with CE, FCC, CCC, ROHS standards. The operating temperature range of -40°C to 85°C can adapt to harsh working environment. DIN rail installation meets the needs of industrial fields and can be widely used in smart cities, smart transportation, smart pipe corridors, smart industry, smart education and other industrial scenarios with Ethernet access or convergence.

Product Features：
✦Support 2 1000BASE-X optical port SFP
✦Support 8 10/100/1000BASE-T Ethernet ports
✦DC10-58V wide voltage dual power supply redundant backup, with anti-reverse connection protection function
✦Passed the EMC industry level 4 standard
✦Full industrial grade materials, IP40 protection grade, low power consumption, industrial grade design: -40°C to 85°C
✦Corrugated high-strength aluminum alloy shell, DIN rail type installation
✦Passed inspection of the Ministry of Public Security, got CCC, FCC, CE, RoHS test certifications
✦Support PoE expansion, IEEE802.3af; maximum power 15.4W, IEEE802.3at; maximum power 30W

Specification	Model: TPK-I22GS8G
Protocol Standard	IEEE802.3，IEEE802.3u，IEEE802.3z
Switching Performance	Forwarding Rate: 14.9Mpps
	Transmission Method: Store and Forward
	Buffer: 2M
	Switched Bandwidth: 20Gbps
	Latency: <5μs
MAC Address Table	16K
Interface	Electrical port: 10/100/1000Base-TX，RJ45 port auto flow control
	Full-Duplex & Half-Duplex mode and MDI/MDI-X auto detect
	Fibre optical port: 1000Base-FX, SFP port
Transmission Distance	Twisted-pair: 100M
	Fiber optics: 550m(multimode)
	20km/40km/60km/80km/100km/120km( single-mode）
PoE Function	IEEE802.3af: max15.4W, IEEE802.3at：max 30w
Indicator Lamp	POWER indicator: PWR1  PWR2（Blue）
	Interface indicator: Light indicator-Link, Flashing indicator-Act（Green）
Power Supply	Input voltage: DC10-58V double power supply back-up

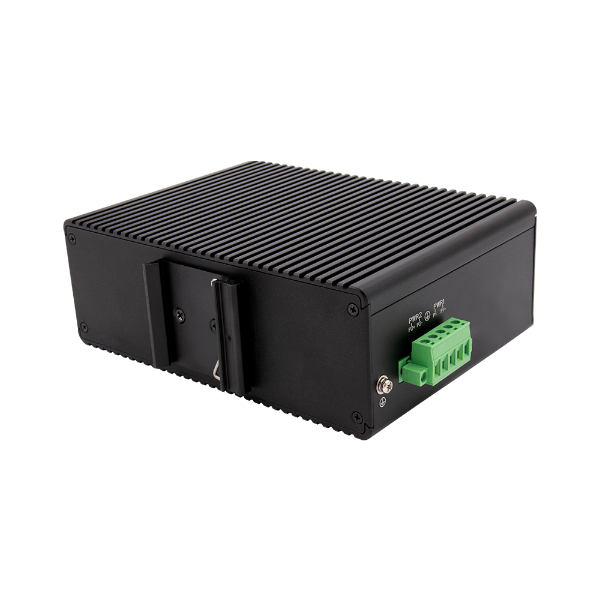

	Access terminal: 5-core 5.08mm pitch plug-in terminal
	Power: <7W
	Overload Protection: support
	Reverse Connection Protection: support
	Redundancy Protection: support
Mechanical Structure	Shell: Aluminum alloy Shell
	Cooling Method: no fan, natural cooling
	IP Grade：IP40
	Dimension：170mm * 113mm * 55mm
	Weight: 850g around

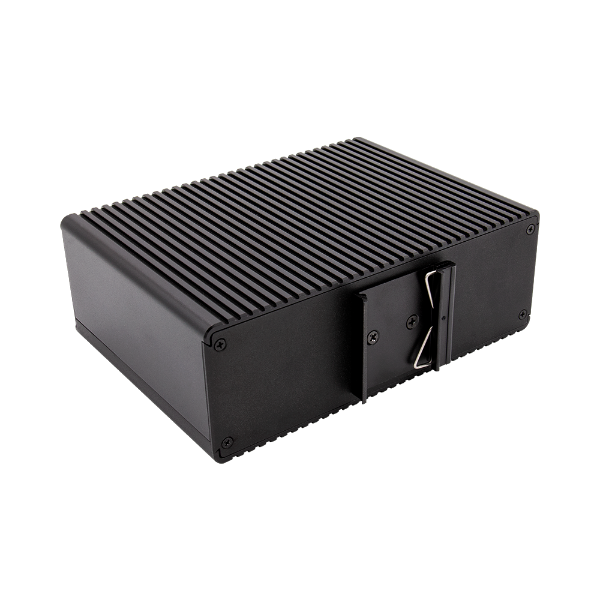

	Installation Method: DIN rail / wall mounted
Environment	Operating Temperature: -40~85℃
	Storage Temperature: -40~85℃
	Relative Humidity: 5%~95%（non-condensing）
Accessories	Power supply terminal, certification, instruction manual, power adapter(optional)
	SFP optical module(optional)
Warranty	MTBF: 450000h
	Warranty: 3 years
Certification	CCC、FCC、CE、RoHS
Industry Standard	EMI：FCC CFR47 Part 15, EN55022/CISPR22, Class A
	EMS             IEC61000-4-2(ESD) ±8kV(contact), ±15kV(air)
	IEC61000-4-3(RS) 10V/m(80MHz-2GHz)
	IEC61000-4-4(EFT) Power Port: ±4kV；Data Port:±2kV
	IEC61000-4-5(Surge) Power Port: ±2kV/DM,±4kV/CM; Data Port: ±2kV
	IEC61000-4-6(CS) 3V(10kHz-150kHz); 10V(150kHz-80MHz)
	Mechanical  IEC60068-2-6 (vibration)
	IEC60068-2-27 (impact)
	IEC60068-2-32 (drop)

Ordering Information
Model	Product Description	Unit
TPK-I22GS8G	2*Gigabit SFP optical port, 8*10/100/1000Base-TX adaptive electrical port	Pieces
TPK-IP22GS8G	2*Gigabit SFP optical port, 8*10/100/1000Base-TX adaptive Ethernet standard PoE power port	Pieces

.
