Standard Color	PANTONE 11C
Construction	Heavy-duty steel
CPU	Intel® Pentium®/ Celeron®/ 2nd and 3rd Generation Core伽 i3/i5/i7
System Memory	2 x DDR3 1333/1066 MHz SO-DIMM
Chipset	Intel® H61
System I/O Outlet	2 x RS232/422/485 3xRS232 1 xVGA IxHDMI MIC-in/Line-out Ports 6 x RJ45 (2 x with POE Optional) 2 x USB 3.0 2 x USB 2.0
DIO	8 bit by DB9
Expansion Interface	1xPCIe16 1xMini-PCIe
Storage	2 x 2.5" SATA HDD Drive bay
Front Panel Indicators	1 x power on / off and 1 x HDD
Front Panel Controls	1 x power on / off
Watchdog Timer	255 levels, 1 -255 sec.
Power Supply	24VDc
Cooling	1 x 8 cm ball-bearin fan with a filter
Operating Temperature	0°C~45°C
Dimensions	238.5mm x 220mm x 120mm
Wall Mount	YES
EOS support	Windows 7/8/10, XP
Certificate	CE

.

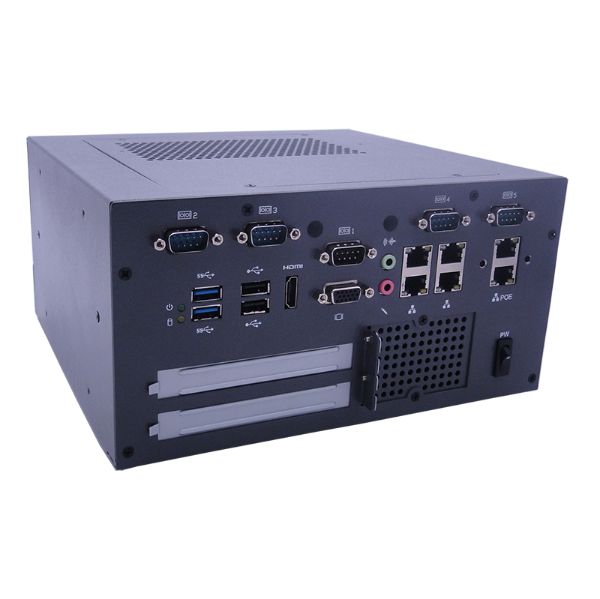

TOP--AAH61-X56
